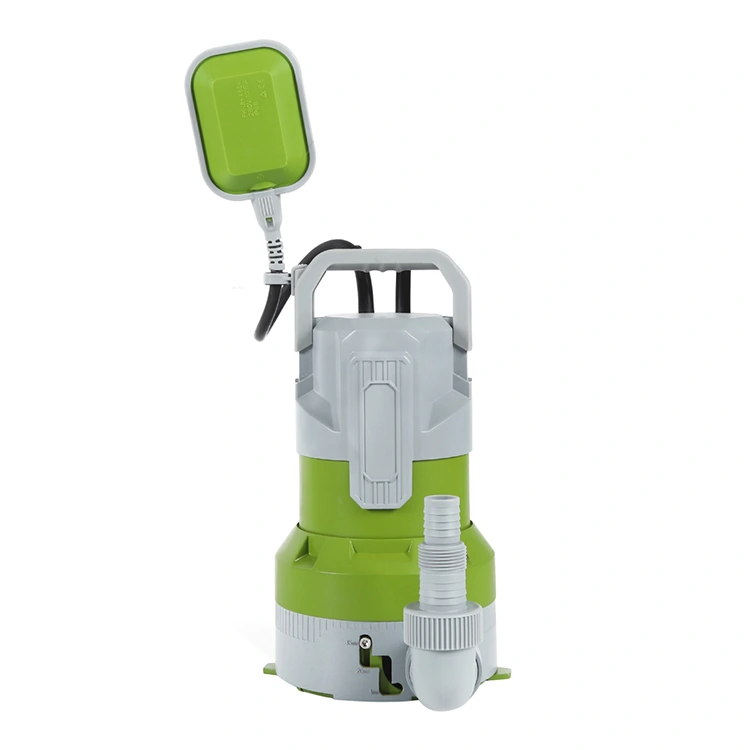

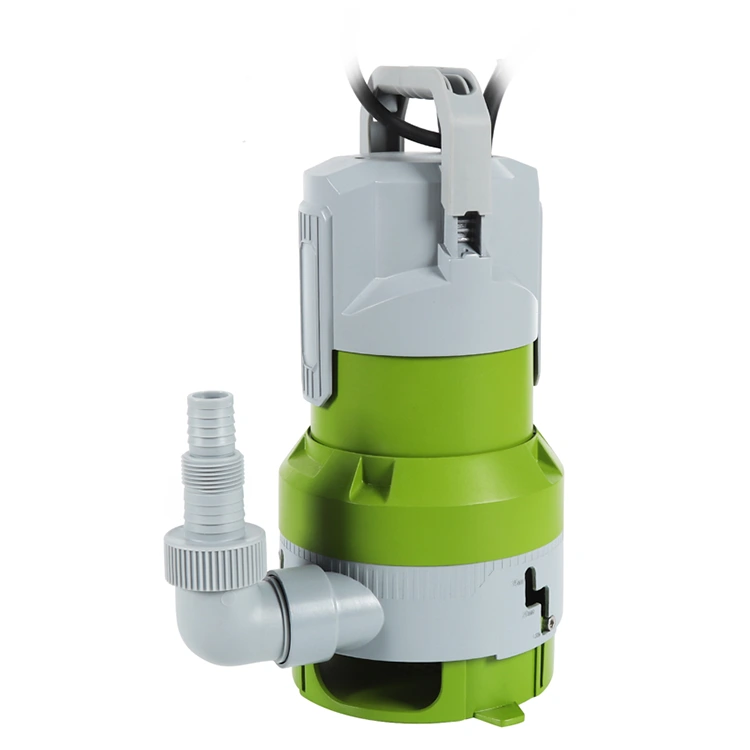

Multi-functional Adjustable Submersible Dirty Water Pump

Multi-functional Adjustable Submersible Dirty Water Pump is a multi-functional, adjustable dirty water submersible pump built with aluminum motor wires and IPX8 waterproof rating, allowing safe and durable submerged operation.It flexibly handles clean water and impurity-containing dirty water, adapts to narrow spaces and complex working conditions, and is easy to operate without professional training. Widely used in various drainage applications.

Core Product Advantages

Compared with ordinary submersible dirty water pumps, Multi-functional Adjustable Submersible Dirty Water Pump offers outstanding advantages in functionality, adaptability and durability, effectively solving users’ pain points. Its core strengths are as follows:

● Strong multi-scenario adaptability: Equipped with an adjustable base and 4-level water level control, supporting clean water and dirty water mode switching. Compatible with water containing particles of 5mm/15mm/35mm in diameter. No need for multiple pumps, covering various water qualities and drainage conditions.

● Suitable for narrow spaces: In float switch automatic control mode, it requires a minimum installation area of only 35×22cm, ideal for small basements, narrow sump wells, equipment gaps and other hard-to-reach areas for conventional pumps.

● High protection & long service life: IPX8 fully waterproof design allows long-term submerged operation. Aluminum motor wires provide excellent heat dissipation and reduce motor loss. Rotating cable clamp protects the power cord, lowering failure and maintenance costs.

● Efficient & thorough pumping: 400W rated power, 13000L/H large flow and 6M head for fast water removal. Supports start at 10mm low water level and residual water level of 1mm, eliminating hidden dangers caused by standing water.

● Flexible & easy operation: Switchable between float switch automatic control and manual constant run mode. No professional skills required, suitable for unattended and long-time continuous drainage.

Core Technical Parameters

All parameters below are confirmed by actual testing to ensure accuracy, providing reliable guidance for buyer selection, installation and daily use.

Key Functions & Features

Multi-functional Adjustable Submersible Dirty Water Pump focuses on multi-function adjustment and practical drainage performance. All functions are field-tested and reliable:

Float Switch Automatic Control (Narrow Space Compatible)

Built-in float switch automatic control with small operating footprint, requiring only 35×22cm installation space. Perfect for small basements, narrow sump wells, equipment gaps and other confined areas.

4-Level Water Level Adjustment

Float switch supports 4 adjustable water levels, allowing flexible setting according to actual drainage needs. Precisely controls start/stop for different water depths, avoiding unnecessary operation and saving energy.

Rotating Cable Clamp with Float Switch

Rotating cable clamp rotates synchronously with the float switch to protect the power cord from pulling or bending damage, reducing failures and extending service life.

Constant Run Function

Supports constant operation mode independent of the float switch, ideal for long-time continuous drainage such as construction site water accumulation and large pool water change.

Low-Level Start & Suction

Starts at a minimum water level of 10mm and drains down to 1mm residual water, thoroughly solving the problem of low-level water that conventional pumps cannot remove.

3-Level Adjustable Base for Clean / Dirty Water

Adjustable base supports clean water and dirty water mode switching, compatible with 5mm/15mm/35mm particles. Handles both clean water and impurity-containing dirty water without changing equipment.

Application Scenarios

With multi-functional adjustment and strong performance, the pump can be directly used in various scenarios without modification:

● Household & civil: Basement drainage, balcony / yard water removal, small pool water change, septic tank sewage pumping;

● Construction & engineering: Temporary site drainage, foundation pit drainage, sewage discharge containing sand and gravel;

● Light industry: Workshop floor drainage, equipment cooling wastewater discharge;

● Others: Narrow space drainage, agricultural irrigation auxiliary drainage, etc.

Order & Delivery Information

● MOQ: 500 units. Favorable terms are available for bulk orders; customization is supported.

● Lead Time: 30–45 days, calculated from order confirmation and deposit receipt. Production progress is closely tracked to ensure on-time delivery.

All information in this document is based on actual product test data, authentic, accurate and traceable, in line with Google EEAT principles, providing reliable purchasing references for buyers. For more details, bulk quotations or customization, please feel free to contact us.
